Oriental Vehicles International Co., Ltd. yog ib qho ntawm cov kws tshaj lij thiab cov neeg muag khoom ntawm tri qag qis txaj trailer nqe hauv Suav teb. Txais tos kom yuav zoo siab tri qag qis txaj trailer nqe muag ntawm no los ntawm peb lub hoobkas. Yog tias koj muaj lus nug txog kev hais lus, thov koj xav email rau peb.

Lub Tsheb Saib Xyuas

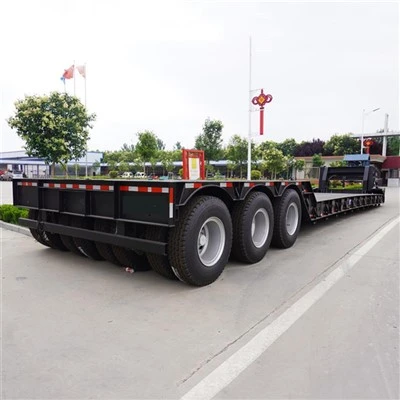

Lub Tri Axle Low Bed Trailer no yog tsim los nrog lub platform ua haujlwm qis, ua rau nws zoo tagnrho rau kev thauj mus los ntawm cov khoom loj thiab hnyav -cov khoom siv. Tsim los ntawm siab - lub zog steel qauv, lub trailer muab lub zog tensile zoo thiab ntev - lub sij hawm durability, kom ntseeg tau tias kev ua tau zoo txawm tias nyob rau hauv ib puag ncig xav tau.

Lub nqaj tseem ceeb yog tsim los siv cov cuab yeej submerged arc vuam thev naus laus zis, uas txhim kho tag nrho cov khoom thauj -cov kabmob muaj peev xwm thiab tswj cov qauv kev ruaj ntseg nyob rau hauv txoj kev hnyav. Nruab nrog hnyav- lub luag haujlwm thauj khoom ramp ua los ntawm siab - lub zog steel, lub trailer ua kom muaj kev nyab xeeb thiab deformation- tiv thaiv kev thauj khoom thiab tshem tawm ntawm cov tshuab loj.

Tsis tas li ntawd, lub zog ncua kev ncua tsis yog tsuas yog ua kom lub tsheb thauj khoom muaj peev xwm tab sis kuj tseem txhim kho torsion tsis kam, cuam tshuam tsis kam, thiab kev tsav tsheb tag nrho. Qhov kev sib xyaw ua ke ntawm cov qauv tsim muaj zog thiab kev tsim kho qib siab ua rau lub tsheb trailer muaj kev cia siab rau kev thauj khoom siv tshuab, cov khoom siv mining, thiab lwm yam khoom hnyav.

TRAILER PARAMETERS

Chaw thau khoom muaj peev xwm	50-150 tons
Axles	3 qag (13T / 16T), muaj nrog FUWA lossis BPW hom
Rims	8.0-20 los yog 900 × 22.5
Nplooj Caij nplooj ntoos hlav	120 hli (dav) × 16 hli (thickness), 10-txheej tsim
Kingpin	JOST 2.0 "los yog 3.5", yeem ntsia liaj qhov rooj - ntawm los yog welded hom
tsaws iav	JOST hom
Qhov ntev	Qhov siab 500 mm; Dav 230 mm
Sab Beam	250 I-beam (10/8/10 configuration)
Khoom siv	HG60 siab -lub zog steel
Platform	5 mm thickness checkered phaj
